Name: TC Factory Direct Sales WPC Door Wrapping Machine WPC Door Laminating Machine
Brand: Guangdong TC Machinery Manufacturing Co., Ltd.
Availability: InStock

Home Products 600/1300MM Width Door Wall Panel Wrapping Machines

TC Factory Direct Sales WPC Door Wrapping Machine WPC Door Laminating Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	TC Machinery Electronic

Contact Now

Detailed Product Description

Machine Type:	LAMINATING MACHINE	Video Outgoing-inspection:	Provided
Machinery Test Report:	Not Available	Core Components:	PLC, Engine, Gearbox, Motor, Pressure Vessel
Warranty:	1 Year	Weight (kg):	2500
Power (kw):	36	Key Selling Points:	High Productivity
Product Name:	PUR Hot Melt Glue Laminating Machine	Glue:	PUR Hot Glue
Covering Film:	PVC,Roll Veneer, PP, Paper, Aluminum Foil, Leather, Etc	Base Profiles:	MDF,Particle Board, Plywood, WPC,PVC,Aluminum, Steel
Scope Of Application:	Integrated Wall Panels, Suspended Ceilings, Set Doors, Furniture	Voltage:	AS Request
Control System:	PCL+Touch Screen	Insulation Function:	Yes
Over Temperature Alarm:	Yes	Low Glue Level Alarm:	Yes

Product Description

The machine is to press decorative pvc film, melamine paper or other

decorative film on the flat surface of wooden,plastic,wood-plastic,

metal board by two sets of pressing rollers, in additiona, machine
include with small pressure wheels, you couldinstall different shapes

of pressure wheels to press decorative film on two side edges or the

bottom sides of the boards.

For the whole pressings of standard machine, you need to load the boards,
cut off the film and unload the boards manually, themachine will spread
glue and laminate decorative film automatically, which will improve the
production effeciency and also assure stable qualified products.

In additional, to meet different customers' requrements, we design both
fully automatical and semic automatical machines for this model, you
could choose according to your budgets and production capacity.

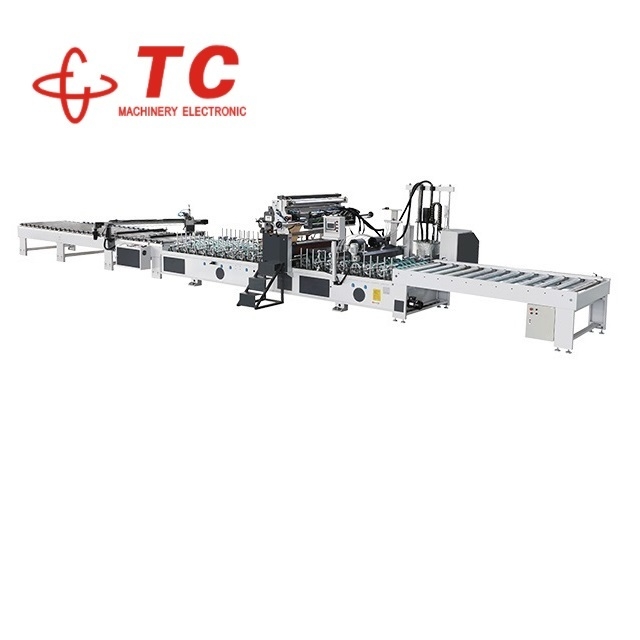

Machine Configurations:
SL.No.	Name of Each Par	Description	Qty.
1	Infeed Roller Conveyor	1350mm width 3m length, with power	1
2	Dust Brusher	to brush the dust	1
3	Dust Air Blower	To wind the dust	2
4	Heating box	IR heating	2
5	Glue Melter Machine	55 Gallon Glue Melter Machine	1
6	Main Wrapping Machine	6.3m length 1300 main wrapping machine	1
				2 sets of pressing roller,
				roll film unwinding unit
				Machine two-side width adjustable
7	Roll Film Auto Corrector	Electric correction and release film device	1
8	Protective Film Laminator	To laminate protective film while laminating decorative film	1
9	Roll Film Crane	To lift the heavy roll film automatically	1
10	Unloading Roller Conveyor	2.9m length,900MMwidth,non-power	1
11	Stair cases	ould go through to stand in the middle to check and clean the glue coating head easily	1

1300 Pur Hot Melt Glue Wrapping Machine
1	Machine	1190023202000mm
2	Machine weight	around 4 tons
3	Processing length	600—3000mm
4	Panel width	600—1220mm
5	Max. Covering film wdith	1300mm
6	Max. Roll Film Diameter	Φ400mm
7	Central Roll Film Diameter	Φ76mm
8	Machine speed	5-20m/min.
9	Feeding motor	2.2kws
10	Heating Lamp power	3 kws
11	Total power	around 45kws（INCL. 200KGS GLUE MELTER MACHINE'S)
12	Hot melt adhesive	30-50g/m2
13	Rubber bucket diameter	55 gallons

Products Words

GLUE COATING HEAD

●Teflon Coating, high temperature resistant

●Non-stick surface treatment

●Gluing knife processing tolerance less than a piece of a hair

LAMINATING EFFECT

● Different designs of pressure wheels to press film on two side edges and bottom edges of the panel

GLUE COATING HEAD

●Teflon Coating, high temperature resistant

●Non-stick surface treatment

●Gluing knife processing tolerance less than a piece

of a hair

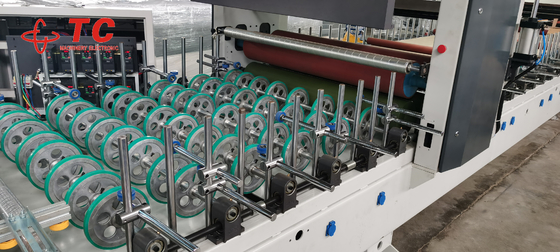

LAMINATING EFFECT

● Install sturdy aluminum alloy wheels and high-quality metal bearings.

● Fast and flexible adjustment design, suitable for
different production ranges.

Transmission system

● 2 sets of pressing rollers to press on flat surface

● Different designs of pressure wheels to press film on two side edges and bottom edges of the panel

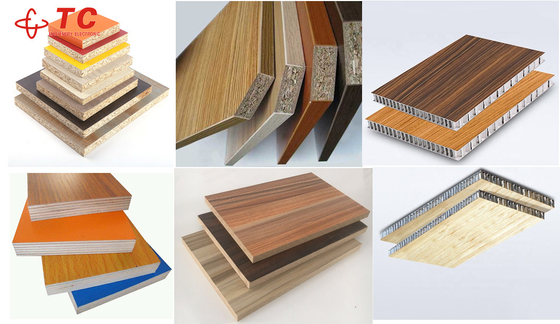

Suitable Materials

PUR universal wrapping machine is suitable for sticking leather,PVC,veneer etc on

decorative strip(wpc strips),aluminum profiles,wood profiles and is mainly for differentangles,ARC,roughness and the edges to get excellent performance.what's
more,PUR glue has the features of anti-aging,anti-UV which makes it to be the top

choice for outdoor.

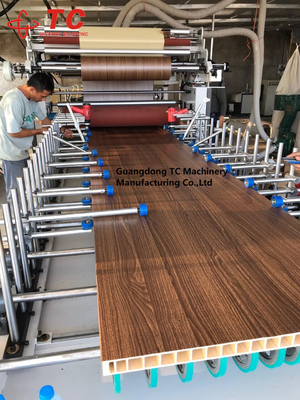

Finished product display

Glue:PUR Hot Glue

Covering Film:PVC,Melamine Roll Paper,Leather

Base Profiles:MDF,Particle board,plywood,WPC,PVC,PVC foam board

Packing & Delivery

1, Foam & shrink film

2, Wooden case should be added more cost

Company Profile

Take innovation as the mission of GUANGDONG TC MACHINERY

MANUFACTURING CO.LTD (Original name Foshan TC Woodworking
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), found
in 2006, factory cover around 30,000 sqm, located in Jiangmen,
Guangdong, China, with marketing center in Shunde, Foshan, Guangdong.

We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative
films on the surface of complex shapes, flat panels.....main products
are as following:

* Complex shaped Profile Wrapping Machine Series
* Multipurpose PUR Hot Glue Flat Panel Machine Series
* PVC Paper Wooden Panel Laminating Machine Series
* Metal Sheet Professional Laminating Machine Series
* Complex Shaped Vacuum Membrane Press Machine Series
* Roll Film Cutting Machine Series
* Glue Spreader Machine Series
* Other Machines and Machine accessories/components.

Our products sells to overall China and many different countries. Currently,
factory has over 100 workers, a perfect after-sales service team and with
a designer team of years experience. Also, to offer customers the qualified
and competitive price products,and assure the best shipment time, we not
only assemble machines, but also produce and sell machine components
and accessories. In additional, we can customize machines according to your’ requirement, support do your best products.Welcome your inquiry and expect

to work with you together and offer you the best service.

our customer

Exhibition

Certifications

FAQ

Q1. Are you a trading company or a factory?
We are the factory since 2006. located at No. 28, Kunshan East Road,

Hecheng Town, Heshan City, Jiangmen City, Guangdong Province,with
a plant area of around 26,000 square meters.

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 50% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
Normal 380V voltage is 10-25 days, other voltages are 20-40 days.depend
on the different machines and the factory order situation.

Q5. What about the after sales services?
Services is permanet.

We will offer photos with illustrations, videos, manual or on-line support.

if you want to service in your factory, need to charge USD110/day/engineer,
in additional, round tickets, hotel, food, translation and any other fees related
to overseas service need to be paid by buyer.
