2. Extra cost is necessary if packed by wooden case
| Machine Type: | LAMINATING MACHINE | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Not Available | Core Components: | PLC, Engine, Gearbox, Motor, Pressure Vessel |
| Warranty: | 1 Year | Weight (kg): | 2500 |
| Power (kw): | 36 | Key Selling Points: | High Productivity |

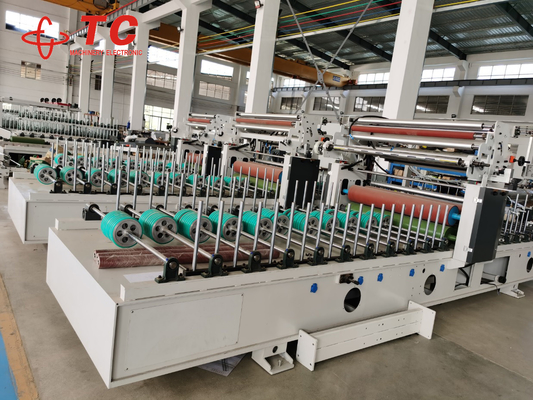

| Product Name: | PUR Hot Melt Glue Laminating Machine | Glue: | PUR Hot Glue |

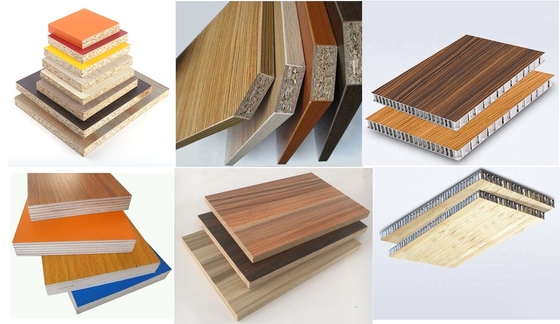

| Covering Film: | PVC,Roll Veneer, PP, Paper, Aluminum Foil, Leather, Etc | Base Profiles: | MDF,Particle Board, Plywood, WPC,PVC,Aluminum, Steel |
| Scope Of Application: | Integrated Wall Panels, Suspended Ceilings, Set Doors, Furniture | Voltage: | AS Request |
| Control System: | PCL+Touch Screen | Insulation Function: | Yes |
| Over Temperature Alarm: | Yes | Low Glue Level Alarm: | Yes |
Machine Configurations:  | ||||||
SL.No.  | Name of Each Par  | Description  | Qty.  | |||
1  | Infeed Roller Conveyor  | 1350mm width 3m length, with power  | 1  | |||
2  | Dust Brusher  | to brush the dust  | 1  | |||
3  | Dust Air Blower  | To wind the dust  | 2  | |||
4  | Heating box  | IR heating  | 2  | |||
5  | Glue Melter Machine  | 55 Gallon Glue Melter Machine  | 1  | |||
6  | Main Wrapping Machine  | 6.3m length 1300 main wrapping machine  | 1  | |||
2 sets of pressing roller,  | ||||||
roll film unwinding unit  | ||||||
Machine two-side width adjustable  | ||||||
7  | Roll Film Auto Corrector  | Electric correction and release film device  | 1  | |||
8  | Protective Film Laminator  | To laminate protective film while laminating decorative film  | 1  | |||
9  | Roll Film Crane  | To lift the heavy roll film automatically  | 1  | |||
10  | Unloading Roller Conveyor  | 2.9m length,900MMwidth,non-power  | 1  | |||
11  | Stair cases  | ould go through to stand in the middle to check and clean the glue coating head easily  | 1  | |||

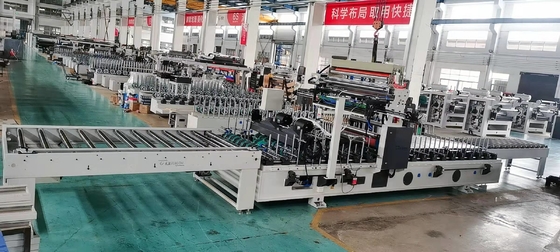

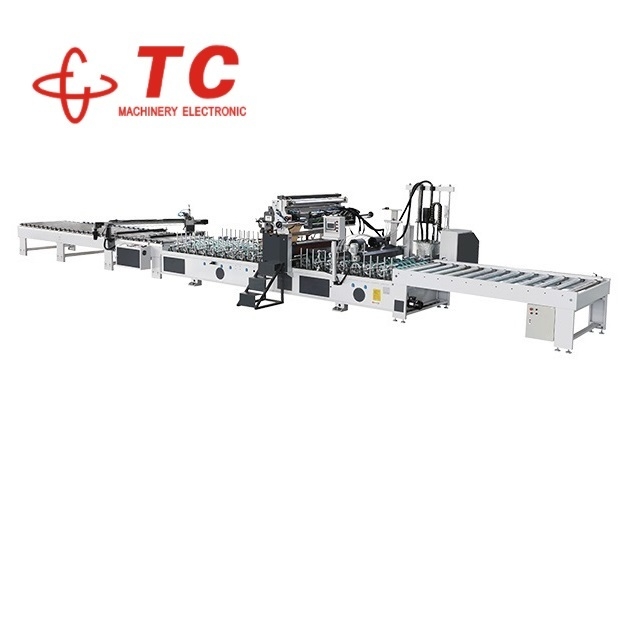

1300 Pur Hot Melt Glue Wrapping Machine  | ||||
1  | Machine  | 11900*2320*2000mm  | ||
2  | Machine weight  | around 4 tons  | ||
3  | Processing length  | 600—3000mm  | ||
4  | Panel width  | 600—1220mm  | ||
5  | Max. Covering film wdith  | 1300mm  | ||
6  | Max. Roll Film Diameter  | Φ400mm  | ||
7  | Central Roll Film Diameter  | Φ76mm  | ||
8  | Machine speed  | 5-20m/min.  | ||
9  | Feeding motor  | 2.2kws  | ||
10  | Heating Lamp power  | 3 kws  | ||
11  | Total power  | around 45kws(INCL. 200KGS GLUE MELTER MACHINE'S)  | ||
12  | Hot melt adhesive  | 30-50g/m2  | ||
13  | Rubber bucket diameter  | 55 gallons  | ||
