Product Details:
Place of Origin: Guangdong, China
Brand Name: TC Machinery Electronic
Contact Now
Detailed Product Description
Machine Type: LAMINATING MACHINE Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Core Components: PLC, Gearbox, Motor, Pressure Vessel
Warranty: 1 Year Weight (kg): 1800
Power (kw): 15 Key Selling Points: Semi-Auto
Product Name: Sticking Paper PVC Laminating Machine Glue: White Latex, Solvent Glue ,PVAC ,PO ,PU
Covering Film: PVC ,Paper ,Veneer,PE Base Profiles: MDF/WPC ,PVC ,Solid Wood ,partial Board ,Aluminum ,Steel, Marbles
Voltage: AS Request Structure Size: According To Customer Requirements
Working Speed: 3-8m/min(Adjustable Speed) Gluing Way: Roller Spreading Glue
Max.working Width: 1300mm Max.working Height: 45mm

Product Description

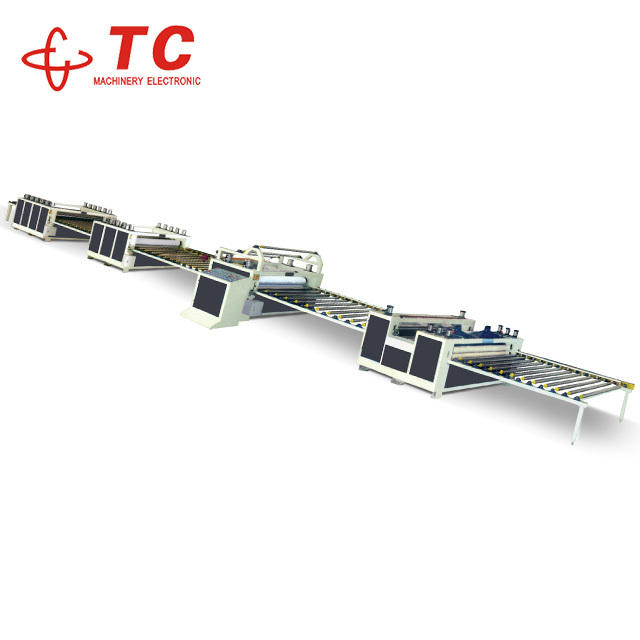

TC-IV 1350/1900MMPVC PAPER LAMINATING MACHINE
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 0
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 2
Main technology parameter
Mode specification
φ190-1350mm
Board length
Above 600mm
Board width
1220mm
Board thickness
1.5-30mm
Rate of material delivery
12m/min
Motivity power
3kw
Heating power
8kw
Machine weight
4000kg
Paper width
1280mm
Structure size
25000*1900*1700mm
Principal axis roller diameter
φ240
Products Words
TC-IV sticking paper PVC machine is suitable for small-medium enterprises of furniture
and Audio and with the features of no wrinkles,bubbles and high precision,reasonable overlay,novel structure and easy operation,which is top choice of pvc equitments.

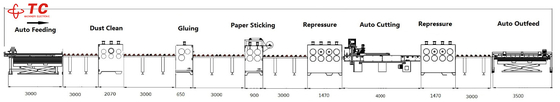

Device confuguration:front-rear deliverly plate,spreading glue system,unwinding structure,automatically cutting system,hot press system.

Using the gluing device for workpiece surface coating, then to press the decorative
film on the surface of workpieces by pressure rollers. During the operation,speed is adjustable,also, could add pre-pressure,automatic cutting, dust cleaning devices and
any other configurations accoring to different requirements, so as to meet the idea usages
of different customers.The complete machine processing could achieve semi-automatic
or fully automatic, the normal processing could be done without human intervention.
Finished flat surface wll have no wrinkles, no bubbles, with stable quality and high
effeciency, the whole processing canbe continuous production, widely use for mdf
plywood decorative boards manufacturer,fumitures and building materials industries.
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 4

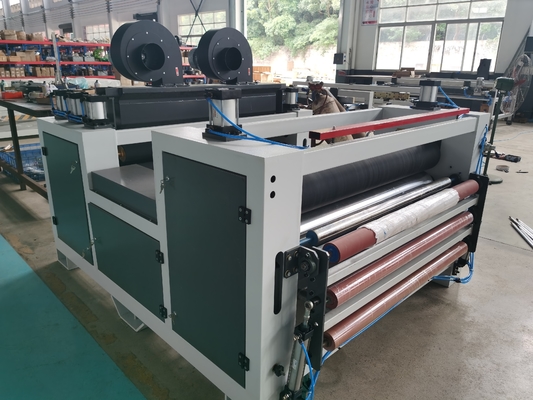

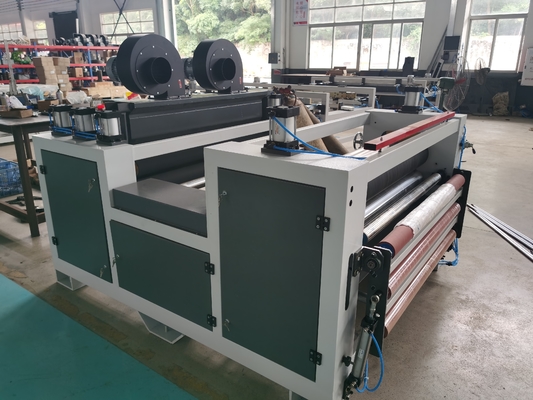

Heating Oven

The glued plate is heated through the drying tunnel to keep the glue surface from hardening and make the surface material and the substrate fit better.
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 6

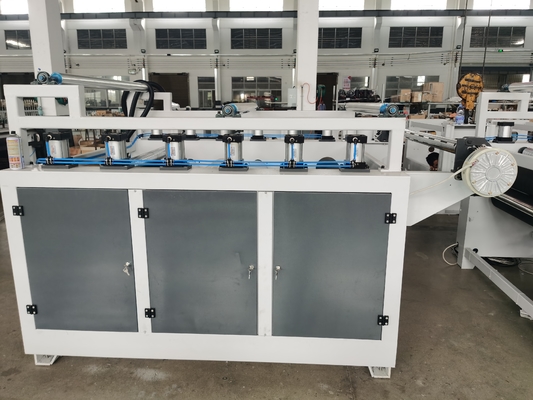

Film Laminator

The glue is evenly applied on the board, and through the laminating system, the surface material and the base material are more closely adhered.
Suitable Materials
Covering Film: PVC Film, Paper

Glue: white latex glue (cold glue)

Base profiles: mdf, plywood, particle board

Furnitures, doors, wall, and other decoration use



Finished product display
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 8
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 10
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 12
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 14
Packing & Delivery
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 16

1. Packed by Foam & shrink film

2. Extra cost is necessary if packed by wooden case
Company Profile
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 18
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 20

---- Focus on the decoration of furniture surface to be a industry benchmark.

Take innovation as the mission of GUANGDONG TC MACHINERY MANUFACTURING CO.LTD (Original name Foshan TC Woodworking
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was
founded in 2006, owns a modernized production base of round 30,000
sqm,has set up many branch marketing companies throughout the country
gradually, with staff 126 employees ,located at Jiangmen city,Guangdong,
China, and operated center in Shunde, Foshan, Guangdong.

it is the China first Top “laminating mahcine professor ”decoration
production line of professional manufacturers.Realized the demand and
harmonious between humans and environment by forest , our owner ,also
the general engineer ,on the other hand has been investing his expertise
on 20 years’ research and development to fulfil decorate furniture surface
by laminate machines to be instead of limited solid wood sources in all over
the world , Meanwhile , most end-user’s underlying quest for smaller ,smarter
and simple Laminating machine production lines . when most companies are
busy marking big ,over-complicated and fancy -looking machines in order to
mark a high price. Yes , we do not follow suit from our beginning in 2006 .

We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative films
on the surface of complex shapes, flat panels.....main products are as following:

*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series


Our products sells to overall China and many different countries.
Currently, factory has over a perfect after-sales service team and with
a designer team of years experience.Also, to offer customers the qualified
and competitive price products, and assure the best shipment time, we not
only assemble machines, but also produce and sell machine components
and accessories. In additional, we can customize machines according to
your' requirement, support do your best products.Welcome your inquiry and
expect to work with you together and offer you the best service.

Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.
our customer
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 22
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 24
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 26
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 28
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 30
Exhibition
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 32
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 34
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 36
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 38
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 40
Why Choose US?
1)Professional Manufacturer of profile
wrapping/laminating machines for 18+ years

2) Factory is around
30,000 square meters

3)
More than 20 after sales service engineers

4) Our machines are
permanent service

5)Designers experience:
20+ years in the industry field
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 42
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 44
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 46
TC Multifunctional Semi-automatic PU Paper Cold Glue Laminating Machine for Wood Based Panels 48
FAQ
Q1. Are you a trading company or a factory?
We are the factory since 2006. Factory at Heshan City,
Jiangmen City, Guangdong Province, around 1~2 hours
from Guangzhou, 1 hour from Foshan by car

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
10-40 working days, depends on what configurations you
choose. we have semic automatic and fully automatic.

Q5. What about the after sales services?
Services is permanet.

1.We will offer photos with illustrations, videos, manual or
on-line support.
2.Service in overseas customer's factory.


if you want to service in your factory, need to charge USD
120/day/engineer, in additional, round tickets, hotel, food,
translation and any other fees related to overseas service
need to be paid by buyer.
