Name: TC Woodworking Machinery Multifunctional Best Quality Cheap Price Film Cold Glue Sticking Laminating Machine for Boards
Brand: Guangdong TC Machinery Manufacturing Co., Ltd.
Availability: InStock

Home Products Cold Glue PVC Paper Wooden Panel Laminating Machin

TC Woodworking Machinery Multifunctional Best Quality Cheap Price Film Cold Glue Sticking Laminating Machine for Boards

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	TC Machinery Electronic

Contact Now

Detailed Product Description

Machine Type:	LAMINATING MACHINE	Video Outgoing-inspection:	Provided
Machinery Test Report:	Not Available	Core Components:	PLC, Gearbox, Motor, Pressure Vessel
Warranty:	1 Year	Weight (kg):	1800
Power (kw):	15	Key Selling Points:	MUFTIFUNCTIONAL
Product Name:	Sticking Paper PVC Laminating Machine	Glue:	Cold Glue( White Latex Glue)
Covering Film:	PVC Film, Paper	Base Profiles:	Mdf, Plywood, Particle Board
Voltage:	AS Request	Structure Size:	800019001700mm
Working Speed:	3-8m/min(Adjustable Speed)	Gluing Way:	Roller Spreading Glue
Max.working Width:	1300mm	Max.working Height:	45mm

Product Description

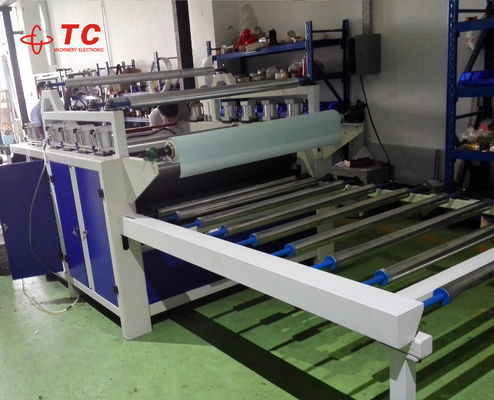

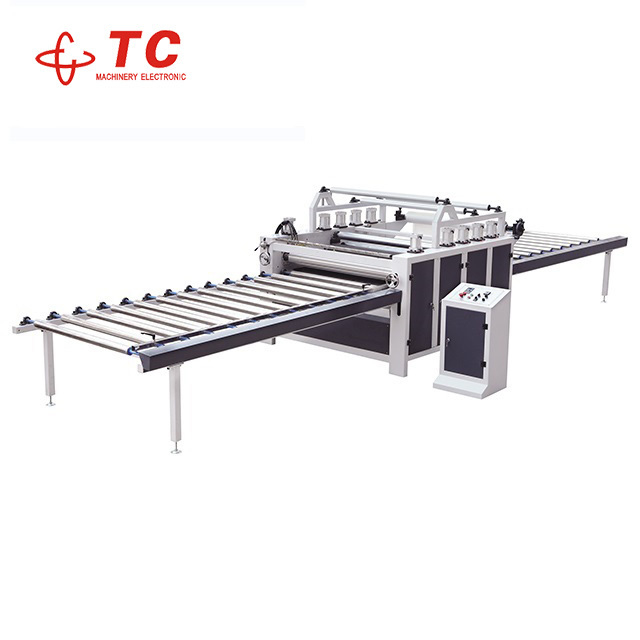

TC-II Pvc Paper Sticking Machine laminating machine

Mode specification	φ190-1350mm
Board length	Above 600mm
Board width	1220mm
Board thickness	1.5-30mm
Rate of material delivery	2-5m/min
Motivity power	1.5kw
Heating power	3kw
Machine weight	2500kg
Paper width	1300mm
Structure size	800019001700mm
Principal axis roller diameter	φ190

Products Words

Sticking paper machine is suitable for small-medium enterprise of furniture and

Audio and with the features of no wrinkles,bubbles and high rate of quality products.

Adopt to advanced-technology of laminating with thehigh precision,reasonable

overlay,novel structure and easy operation,which is top choice of PVC equipments.

Device configuration:front-rear delivery plate,spreading glue system,unwinding structure,automatically cutting system,hot press system.

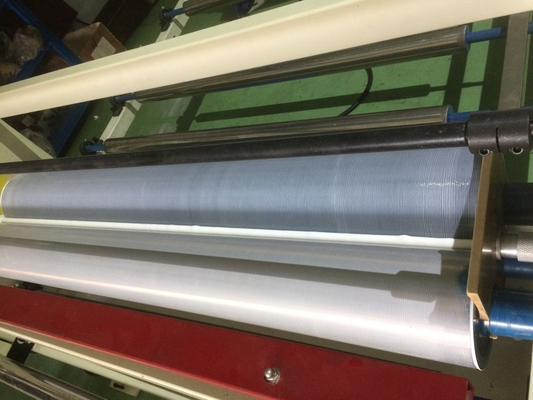

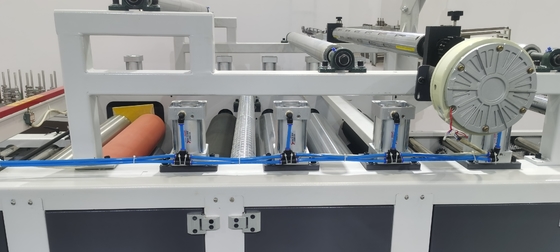

Pressing Rollers

*4 sets of pressing rollers(2 are steel heat rollers)

*Glue is evenly applied

GLUE SREADER

This part change to glue spreader,the front

and back delivery convey are the steel rollers (like the photo's)

Suitable Materials

Glue:cold glue( white latex glue)

Covering Film：PVC Film, Paper

Base Profiles：mdf, plywood, particle board

Finished product display

Packing & Delivery

1. Packed by Foam & shrink film

2. Extra cost is necessary if packed by wooden case

Company Profile

---- Focus on the decoration of furniture surface to be a industry benchmark.

Take innovation as the mission of GUANGDONG TC MACHINERY

MANUFACTURING CO.LTD (Original name Foshan TC Woodworking

Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was
founded in 2006, owns a modernized production base of round 30,000
sqm,has set up many branch marketing companies throughout the
country gradually, with staff 126 employees ,located at Jiangmen city,
Guangdong, China, and operated center in Shunde, Foshan, Guangdong.

it is the China first Top “laminating mahcine professor ”decoration
production line of professional manufacturers.Realized the
demand and harmonious between humans and environment by forest ,
our owner ,also the general engineer ,on the other hand has been
investing his expertise on 20 years’ research and development to fulfil
decorate furniture surface by laminate machines to be instead of limited
solid wood sources in all over the world , Meanwhile , most end-user’s
underlying quest for smaller ,smarter and simple Laminating machine
production lines . when most companies are busy marking big ,
over-complicated and fancy -looking machines in order to mark a high
price. Yes , we do not follow suit from our beginning in 2006 .

We specializes in designing and manufacturing surface decorative wrapping/laminating machines: spread glue, laminate decorative
films on the surface of complex shapes, flat panels.....main products
are as following:

*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series

Our products sells to overall China and many different countries.
Currently, factory has over a perfect after-sales service team and
with a designer team of years experience.Also, to offer customers
the qualified and competitive price products, and assure the best
shipment time, we not only assemble machines, but also produce
and sell machine components and accessories. In additional, we can
customize machines according to your' requirement, support do your
best products.Welcome your inquiry and expect to work with you together
and offer you the best service.

Through many years’ arduous effort and development plan, the
comprehensive strength of “TC”has been increasing stably, realizing
the strategic goal of sustainable and sound development. The popularity
and reputation degree of its brand increase.

our customer

Exhibition

Why Choose US?

1）Professional Manufacturer of profile

wrapping/laminating machines for 18+ years

2) Factory is around 30,000 square meters

3) More than 20 after sales service engineers

4) Our machines are permanent service

5）Designers experience: 20+ years in the industry field

FAQ

Q1. Are you a trading company or a factory?
We are the factory since 2006. Factory at Heshan City, Jiangmen City, Guangdong Province, around 1~2 hours
from Guangzhou, 1 hour from Foshan by car

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
10-40 working days, depends on what configurations you
choose. we have semic automatic and fully automatic.

Q5. What about the after sales services?
Services is permanet.

1.We will offer photos with illustrations, videos, manual or
on-line support.
2.Service in overseas customer's factory.

if you want to service in your factory, need to charge USD
120/day/engineer, in additional, round tickets, hotel, food,
translation and any other fees related to overseas service
need to be paid by buyer.
