Product Details:
Place of Origin: Guangdong, China
Brand Name: TC Machinery Electronic
Contact Now
Detailed Product Description
Machine Type: LAMINATING MACHINE Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Core Components: PLC, Engine, Gearbox, Motor, Pressure Vessel
Warranty: 1 Year Weight (kg): 2500
Power (kw): 36 Key Selling Points: High Productivity
Product Name: PUR Hot Melt Glue Laminating Machine Glue: PUR Hot Glue
Covering Film: PVC,Roll Veneer, PP, Paper, Aluminum Foil, Leather, Etc Base Profiles: MDF,Particle Board, Plywood, WPC,PVC,Aluminum, Steel
Scope Of Application: Integrated Wall Panels, Suspended Ceilings, Set Doors, Furniture Voltage: AS Request
Control System: PCL+Touch Screen Insulation Function: Yes
Over Temperature Alarm: Yes Low Glue Level Alarm: Yes

Product Description
The machine is to press decorative pvc film, melamine paper or other
decorative film on the flat surface of wooden,plastic,wood-plastic,
metal board by two sets of pressing rollers, in additiona, machine
include with small pressure wheels, you couldinstall different shapes
of pressure wheels to press decorative film on two side edges or the
bottom sides of the boards.

For the whole pressings of standard machine, you need to load the boards,
cut off the film and unload the boards manually, themachine will spread
glue and laminate decorative film automatically, which will improve the
production effeciency and also assure stable qualified products.

In additional, to meet different customers' requrements, we design both
fully automatical and semic automatical machines for this model, you
could choose according to your budgets and production capacity.
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 0
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 2

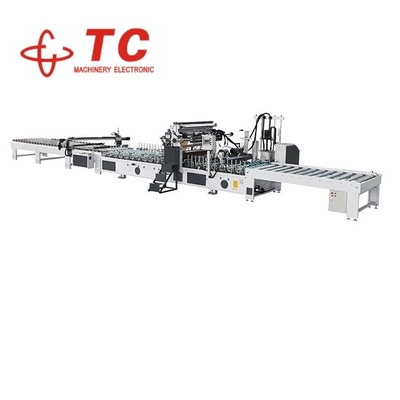

Machine Configurations:
SL.No.
Name of Each Par
Description
Qty.
1
Infeed Roller Conveyor
1350mm width 3m length, with power
1
2
Dust Brusher
to brush the dust
1
3
Dust Air Blower
To wind the dust
2
4
Heating box
IR heating
2
5
Glue Melter Machine
55 Gallon Glue Melter Machine
1


6


Main Wrapping
Machine
6.3m length 1300 main wrapping machine


1
2 sets of pressing roller,
roll film unwinding unit
Machine two-side width adjustable
7
Roll Film Auto Corrector
Electric correction and release film device
1
8
Protective Film Laminator
To laminate protective film while laminating decorative film
1
9
Roll Film Crane
To lift the heavy roll film automatically
1
10
Unloading Roller Conveyor
2.9m length,900MMwidth,non-power
1
11
Stair cases
ould go through to stand in the middle to check and clean the glue coating head easily
1
1300 Pur Hot Melt Glue Wrapping Machine
1
Machine
11900*2320*2000mm
2
Machine weight
around 4 tons
3
Processing length
600—3000mm
4
Panel width
600—1220mm
5
Max. Covering film wdith
1300mm
6
Max. Roll Film Diameter
Φ400mm
7
Central Roll Film Diameter
Φ76mm
8
Machine speed
5-20m/min.
9
Feeding motor
2.2kws
10
Heating Lamp power
3 kws
11
Total power
around 45kws(INCL. 200KGS GLUE MELTER MACHINE'S)
12
Hot melt adhesive
30-50g/m2
13
Rubber bucket diameter
55 gallons
Products Words
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 4


GLUE COATING HEAD

●Teflon Coating, high temperature resistant

●Non-stick surface treatment

●Gluing knife processing tolerance less than a piece
of a hair

TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 6

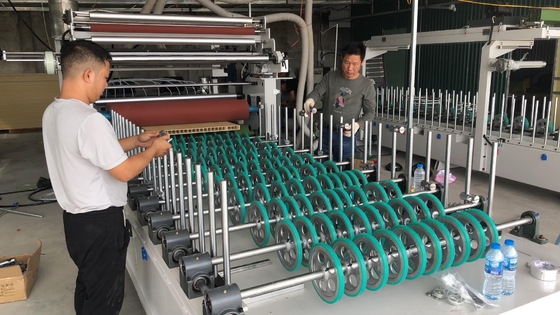

LAMINATING EFFECT

● Install sturdy aluminum alloy wheels and high-quality metal bearings.

● Fast and flexible adjustment design, suitable for
different production ranges.
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 8

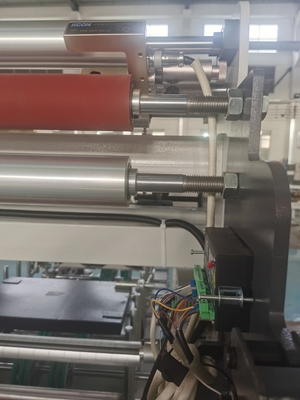

Transmission system

2 sets of pressing rollers to press on flat surface
● Different designs of pressure wheels to press film on two side edges and bottom edges of the panel
Suitable Materials
PUR universal wrapping machine is suitable for sticking leather,PVC,veneer etc on
decorative strip(wpc strips),aluminum profiles,wood profiles and is mainly for differentangles,ARC,roughness and the edges to get excellent performance.what's
more,PUR glue has the features of anti-aging,anti-UV which makes it to be the top
choice for outdoor.

Glue:PUR Hot Glue

Covering Film:PVC,Melamine Roll Paper,Leather

Base Profiles:MDF,Particle board,plywood,WPC,PVC,PVC foam board



Finished product display
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 10
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 12
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 14
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 16
Packing & Delivery

1. Packed by Foam & shrink film

2. Extra cost is necessary if packed by wooden case
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 18
Company Profile
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 20
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 22

---- Focus on the decoration of furniture surface to be a industry benchmark.

Take innovation as the mission of GUANGDONG TC MACHINERY MANUFACTURING
CO.LTD (Original name Foshan TC Woodworking
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was
founded in 2006, owns a modernized production base of round 30,000
sqm,has set up many branch marketing companies throughout the country
gradually, with staff 126 employees ,located at Jiangmen city,Guangdong,
China, and operated center in Shunde, Foshan, Guangdong.

it is the China first Top “laminating mahcine professor ”decoration
production line of professional manufacturers.Realized the demand and
harmonious between humans and environment by forest , our owner ,also
the general engineer ,on the other hand has been investing his expertise on
20 years’ research and development to fulfil decorate furniture surface by
laminate machines to be instead of limited solid wood sources in all over
the world , Meanwhile , most end-user’s underlying quest for smaller ,smarter
and simple Laminating machine production lines . when most companies are
busy marking big ,over-complicated and fancy -looking machines in order to
mark a high price. Yes , we do not follow suit from our beginning in 2006 .

We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative
films on the surface of complex shapes, flat panels.....main products
are as following:

*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series

Our products sells to overall China and many different countries. Currently,
factory has over a perfect after-sales service team and with a designer team of
years experience. Also, to offer customers the qualified and competitive price
products, and assure the best shipment time, we not only assemble machines,
but also produce and sell machine components and accessories. In additional,
we can customize machines according to your' requirement, support do your
best products.Welcome your inquiry and expect to work with you together and
offer you the best service.

Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.
our customer
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 24
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 26
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 28
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 30
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 32
Exhibition
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 34
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 36
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 38
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 40
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 42
Why Choose US?

1)Professional Manufacturer of profile wrapping/laminating machines for 18+ years

2) Factory is around
30,000 square meters

3)
More than 20 after sales service engineers

4) Our machines are
permanent service

5)Designers experience:
20+ years in the industry field

TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 44
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 46
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 48
TC Woodworking Machinery Door Panel Sticking PVC Melamine Roll Paper Leather PUR Hot Melt Laminating Machine 50
FAQ

Q1. Are you a trading company or a factory?
We are the factory since 2006. Factory at Heshan City,
Jiangmen City, Guangdong Province, around 1~2 hours
from Guangzhou, 1 hour from Foshan by car

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
10-40 working days, depends on what configurations you
choose. we have semic automatic and fully automatic.

Q5. What about the after sales services?
Services is permanet.

1.We will offer photos with illustrations, videos, manual or
on-line support.
2.Service in overseas customer's factory.


if you want to service in your factory, need to charge USD120/day/engineer,
in additional, round tickets, hotel, food, translation and any other fees related to overseas service need to be paid by buyer.
