Product Details:
Place of Origin: Guangdong, China
Brand Name: TC Machinery Electronic
Contact Now
Detailed Product Description
Machine Type: LAMINATING MACHINE Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Core Components: PLC, Gearbox, Motor, Pressure Vessel
Warranty: 1 Year Weight (kg): 1800
Power (kw): 15 Key Selling Points: Semi-Auto
Product Name: Sticking Paper PVC Laminating Machine Glue: White Latex, Solvent Glue ,PVAC ,PO ,PU
Covering Film: PVC ,Paper ,Veneer,PE Base Profiles: MDF/WPC ,PVC ,Solid Wood ,partial Board ,Aluminum ,Steel, Marbles
Voltage: AS Request Structure Size: According To Customer Requirements
Working Speed: 3-8m/min(Adjustable Speed) Gluing Way: Roller Spreading Glue
Max.working Width: 1300mm Max.working Height: 45mm

Product Description

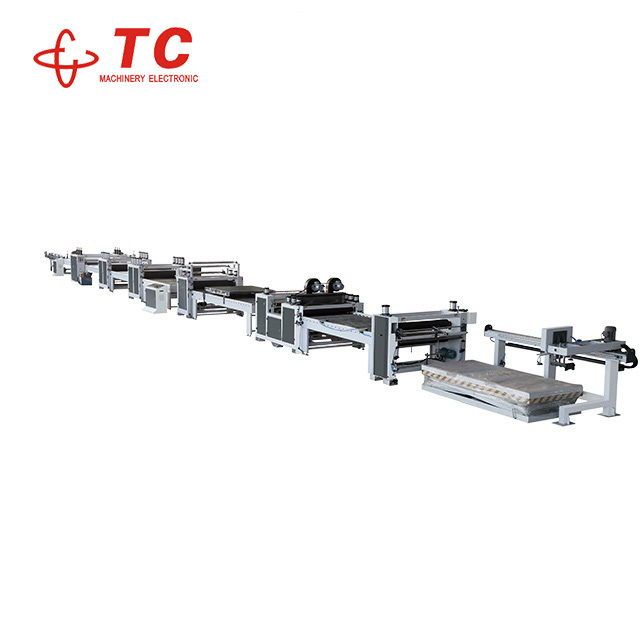

TC-V Fully Automatic Sticking PU decorative /printed papers sticking laminating machines on mdf for melamine panels

1. Auto Pushing panels;
2. Infeed Conveyor;
3. Dust Removing + Glue Spreading;
4. Middle Conveyor +Heating oven;
5. Film Pressing+ Pre-trimming;
6. Auto Cutting;
7. Re-pressing+ Conveyor;
8. Re-pressing+ Conveyor;
9. Embossing+Outfeed conveyor;
10. Auto Dropping;
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 0
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 2
Main technology parameter
Mode specification
φ190-1350mm
Board length
Above 600mm
Board width
1220mm
Board thickness
1.5-30mm
Rate of material delivery
5-25m/min
Motivity power
8kw
Heating power
20kw
Machine weight
around 4000kgs
Paper width
1280mm
Structure size
18000*2000*1800mm
Principal axis roller diameter
φ190
Roller specification
diameter 190 x L 1350mm
Max. covering Film Width
1280mm
Panel thickness:
3-45mm
Panel sizes
1220 *2440mm
machine speed
1~20m/min.
Min. processing panel length
500mm
Products Words
TC-V sticking paper PVC machine is suitable for small-medium enterprises of furniture
and Audio and with the features of no wrinkles,bubbles and high precision,reasonable overlay,novel structure and easy operation,which is top choice of pvc equitments.Device confuguration:front-rear deliverly plate,spreading glue system,unwinding structure,
automatically cutting system,hot press system.

This is our latest designed fully automatic laminating machine, which focus on high
quality standard.

Embossing is to laminate the textured surface.(normal machine can only laminate
smooth surface or need to use textured paper, this machine can use normal paper
to achieve textured surface effect)

The machines of the same series with different configurations and different structures
to meet different customers' requirements.
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 4


Heating Oven

The glued plate is heated through the drying tunnel to keep the glue surface from hardening and make the surface material and the substrate fit better.
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 6

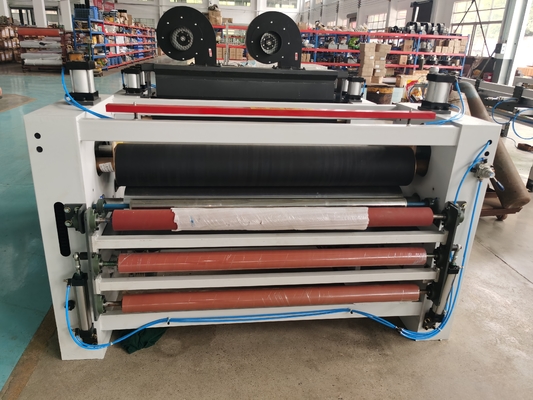

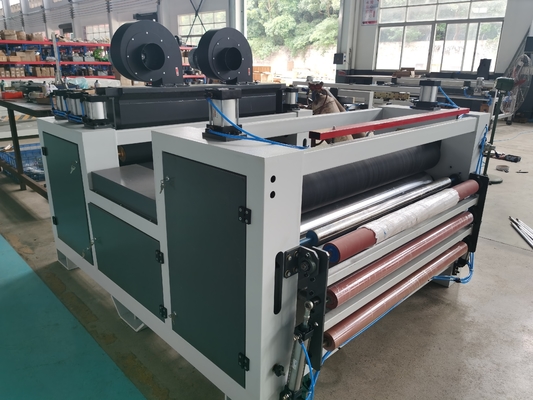

Film Laminator

The glue is evenly applied on the board, and through the laminating system, the surface material and the base material are more closely adhered.
Suitable Materials
Covering Film: PVC Film, Paper

Glue: white latex glue (cold glue)

Base profiles: mdf, plywood, particle board

Furnitures, doors, wall, and other decoration use


Finished product display
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 8
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 10
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 12
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 14
Packing & Delivery


1. Packed by Foam & shrink film

2. Extra cost is necessary if packed by wooden case
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 16
Company Profile
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 18
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 20

---- Focus on the decoration of furniture surface to be a industry benchmark.

Take innovation as the mission of GUANGDONG TC MACHINERY MANUFACTURING CO.LTD (Original name Foshan TC Woodworking
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was
founded in 2006, owns a modernized production base of round 30,000
sqm,has set up many branch marketing companies throughout the country
gradually, with staff 126 employees ,located at Jiangmen city,Guangdong,
China, and operated center in Shunde, Foshan, Guangdong.

it is the China first Top “laminating mahcine professor ”decoration production
line of professional manufacturers.Realized the demand and harmonious between
humans and environment by forest , our owner ,also the general engineer ,on the
other hand has been investing his expertise on 20 years’ research and development
to fulfil decorate furniture surface by laminate machines to be instead of limited solid
wood sources in all over the world , Meanwhile , most end-user’s underlying quest for
smaller ,smarter and simple Laminating machine production lines . when most
companies are busy marking big ,over-complicated and fancy -looking machines
in order to mark a high price. Yes , we do not follow suit from our beginning in 2006 .

We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative films on
the surface of complex shapes, flat panels.....main products are as following:

*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series


Our products sells to overall China and many different countries. Currently,
factory has over a perfect after-sales service team and with a designer team
of years experience.Also, to offer customers the qualified and competitive
price products, and assure the best shipment time, we not only assemble
machines, but also produce and sell machine components and accessories.
In additional, we can customize machines according to your' requirement,
support do your best products.Welcome your inquiry and expect to work with
you together and offer you the best service.

Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.
our customer
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 22
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 24
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 26
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 28
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 30
Exhibition
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 32
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 34
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 36
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 38
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 40
Why Choose US?
1)Professional Manufacturer of profile wrapping/laminating
machines for 18+ years

2) Factory is around
30,000 square meters

3)
More than 20 after sales service engineers

4) Our machines are
permanent service

5)Designers experience:
20+ years in the industry field
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 42
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 44
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 46
TC Woodworking Machinery Company Factory Price Fully-automatic 1350mm Wooden Panel Laminating Machine 48
FAQ
Q1. Are you a trading company or a factory?
We are the factory since 2006. Factory at Heshan City, Jiangmen City, Guangdong Province, around 1~2 hours from
Guangzhou, 1 hour from Foshan by car

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
10-40 working days, depends on what configurations you
choose. we have semic automatic and fully automatic.

Q5. What about the after sales services?
Services is permanet.

1.We will offer photos with illustrations, videos, manual or
on-line support.
2.Service in overseas customer's factory.

if you want to service in your factory, need to charge USD
120/day/engineer, in additional, round tickets, hotel, food,
translation and any other fees related to overseas service
need to be paid by buyer.
