Name: Automatic Flat Laminating Machine for Acrylic, Aluminum Board with Bubble-Free, 5-15m/min, CE Certificated
Brand: Guangdong TC Machinery Manufacturing Co., Ltd.
Availability: InStock

Home Products Cold Glue PVC Paper Wooden Panel Laminating Machin

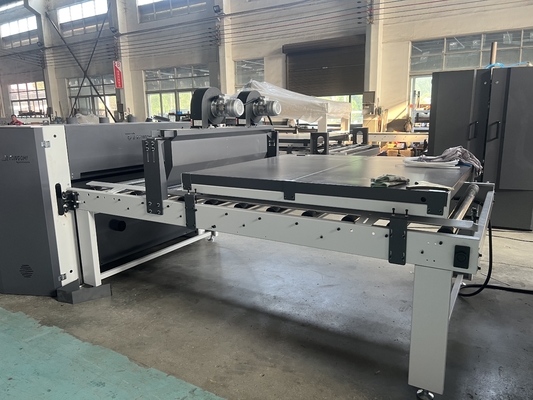

Automatic Flat Laminating Machine for Acrylic, Aluminum Board with Bubble-Free, 5-15m/min, CE Certificated

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	TC Machinery Electronic

Contact Now

Detailed Product Description

Machine Type:	LAMINATING MACHINE	Video Outgoing-inspection:	Provided
Machinery Test Report:	Not Available	Core Components:	PLC, Gearbox, Motor, Pressure Vessel
Warranty:	1 Year	Weight (kg):	1800
Power (kw):	15	Key Selling Points:	Semi-Auto
Product Name:	Sticking Paper PVC Laminating Machine	Glue:	White Latex, Solvent Glue ,PVAC ,PO ,PU
Covering Film:	PVC ,Paper ,Veneer,PE	Base Profiles:	MDF/WPC ,PVC ,Solid Wood ,partial Board ,Aluminum ,Steel, Marbles
Voltage:	AS Request	Structure Size:	According To Customer Requirements
Working Speed:	3-8m/min(Adjustable Speed)	Gluing Way:	Roller Spreading Glue
Max.working Width:	1300mm	Max.working Height:	45mm

Product Description

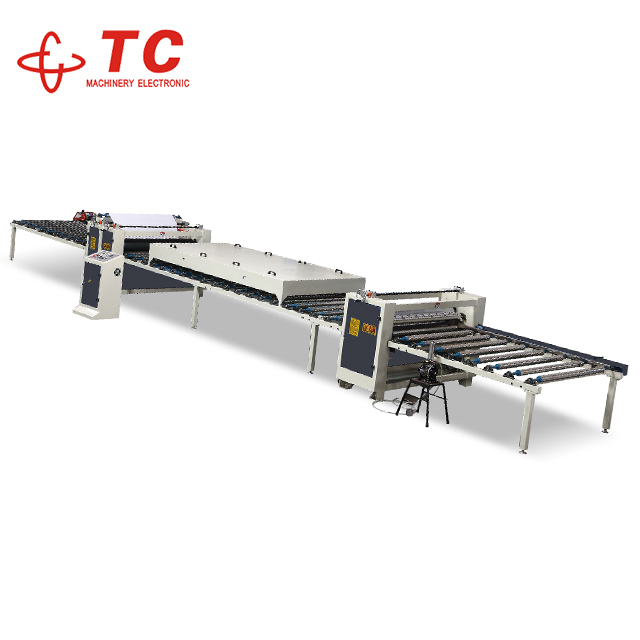

TC-IIIA Pvc Paper Sticking Machine laminating machine

Mode specification	φ190-1350mm
Board length	Above 600mm
Board width	1220mm
Board thickness	1.5-30mm
Rate of material delivery	5-10m/min
Motivity power	3kw
Heating power	8kw
Machine weight	3000kg
Paper width	1280mm
Structure size	1080019001700mm
Principal axis roller diameter	φ190

Products Words

TC-IIIA sticking paper machine is suitable for small-medium enterprises of furniture

and Audio and with the features of no wrinkles,bubbles and high precision,reasonable

overlay,novel structure and easy operation,which is top choice of pvc equitments.Device confuguration:front-rear deliverly plate,spreading glue system,unwinding structure,

automatically cutting system,hot press system.

This is the medium level machine, it is an ideal machine for the medium big enterprises

for semic automatic machine, you just need to load the panels, cut off film and unload the panels, the machine can spread glue and laminate automatically, the finished products have no bubbles and wrinkles, improve a lot of production effieciency , also assure the qualified products, and save labor cost. If you want longer machines with higher production effeciency or more economy machines or fully automatic, just feel free to contact for more options.

Heating Oven

The glued plate is heated through the drying tunnel to keep the glue surface from hardening and make the surface material and the substrate fit better.

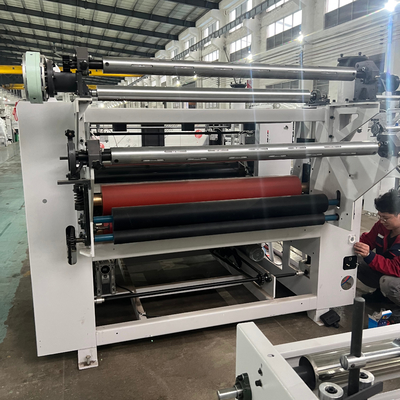

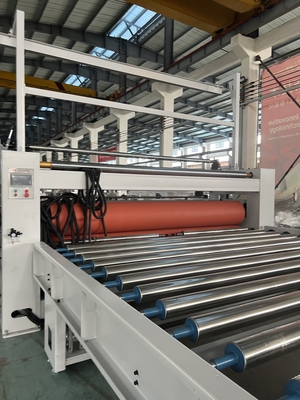

Film Laminator

The glue is evenly applied on the board, and through the laminating system, the surface material and the base material are more closely adhered.

Suitable Materials

Glue:Cold glue, Solvent glue,solvent water based glue

Covering Film:PVC ,Paper

Base Profiles:MDF ,WPC ,PVC ,Solid wood ,partial board

Finished product display

Packing & Delivery

1. Packed by Foam & shrink film

2. Extra cost is necessary if packed by wooden case

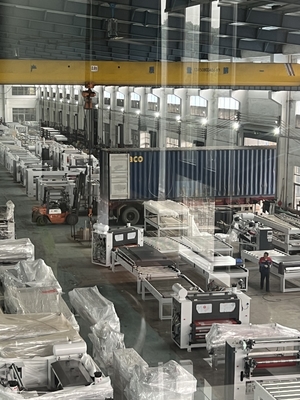

Company Profile

---- Focus on the decoration of furniture surface to be a industry benchmark.

Take innovation as the mission of GUANGDONG TC MACHINERY MANUFACTURING CO.LTD (Original name Foshan TC Woodworking Machinery
Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was founded in 2006, owns a modernized production base of round 30,000 sqm,has set up many branch marketing companies throughout the country gradually, with staff 126 employees ,located at Jiangmen city,Guangdong, China, and operated center in Shunde, Foshan, Guangdong.

it is the China first Top “laminating mahcine professor ”decoration production line

of professional manufacturers.Realized the demand and harmonious between humans and environment by forest , our owner ,also the general engineer ,on the other hand has been investing his expertise on 20 years’ research and development to fulfil decorate furniture surface by laminate machines to be instead of limited solid wood sources in

all over the world , Meanwhile , most end-user’s underlying quest for smaller ,smarter
and simple Laminating machine production lines . when most companies are busy marking big ,over-complicated and fancy -looking machines in order to mark a high

price. Yes , we do not follow suit from our beginning in 2006 .

We specializes in designing and manufacturing surface decorative wrapping/laminating machines: spread glue, laminate decorative films on the surface of complex shapes, flat panels.....main products are as following:

*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series

Our products sells to overall China and many different countries. Currently, factory
has over a perfect after-sales service team and with a designer team of years experience.
Also, to offer customers the qualified and competitive price products, and assure the best shipment time, we not only assemble machines, but also produce and sell machine components and accessories. In additional, we can customize machines according to
your' requirement, support do your best products.Welcome your inquiry and expect to
work with you together and offer you the best service.

Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.

our customer

our customer

Why Choose US?

1）Professional Manufacturer of profile wrapping/laminating

machines for 18+ years

2) Factory is around 30,000 square meters

3) More than 20 after sales service engineers

4) Our machines are permanent service

5）Designers experience: 20+ years in the industry field

FAQ

Q1. Are you a trading company or a factory?
We are the factory since 2006. Factory at Heshan City,

Jiangmen City, Guangdong Province, around 1~2 hours
from Guangzhou, 1 hour from Foshan by car

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
10-40 working days, depends on what configurations you
choose. we have semic automatic and fully automatic.

Q5. What about the after sales services?
Services is permanet.

1.We will offer photos with illustrations, videos, manual or
on-line support.
2.Service in overseas customer's factory.

if you want to service in your factory, need to charge USD
120/day/engineer, in additional, round tickets, hotel, food,
translation and any other fees related to overseas service
need to be paid by buyer.

Guangdong TC Machinery Manufacturing Co.Ltd

FactoryAdd: Kunshan East Road, Hecheng Town, Heshan City, Jiangmen , Guangdong,China

Marketing Center:North of Xinxi 3rd, Lunjiao Town, Shunde , Foshan,
Guangdong , China

Web: www-tclaminatingmachine.com

Contact: Anna Yi Tel/ Wechat / Whatsapp: 86-13556940290
