Name: TC Factory Price Laminated Paper Plastic Film Slitting and Rewinding Machine Pe Film Slitting Machine
Brand: Guangdong TC Machinery Manufacturing Co., Ltd.
Availability: InStock

Home Products Film Cutting Machines Series

TC Factory Price Laminated Paper Plastic Film Slitting and Rewinding Machine Pe Film Slitting Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	TC Machinery Electronic

Contact Now

Detailed Product Description

Machine Type:	Roll Film Cutting Machine	Video Outgoing-inspection:	Provided
Machinery Test Report:	Not Available	Core Components:	PLC, Engine, Gearbox, Motor, Gear
Warranty:	1 Year	Weight (kg):	2500
Power (kw):	8	Key Selling Points:	High Speed
Product Name:	Film Cutting Machine	Advantage:	Automatic Correction, High-speed Slitting
Cut Material:	PVC, PP Film, Leather, Etc.	Style:	Various
Use:	Slitting And Winding Of Various Cladding Materials	Max Process Widdth:	1300-1350mm
Max Material Diameter:	450mm	Material Rolling Speed:	2-80m/min
Cutting Thickness:	0.05-0.5mm	Material Rolling Motor Power:	1.5-3kw

Product Description

Machine Features:

Cut pvc roll film, paper, leather, pet film, veneer, so on .

Can calculate cutting length and stop automatically; PLC touch screen control, roll film auto corrector and edge trimming.

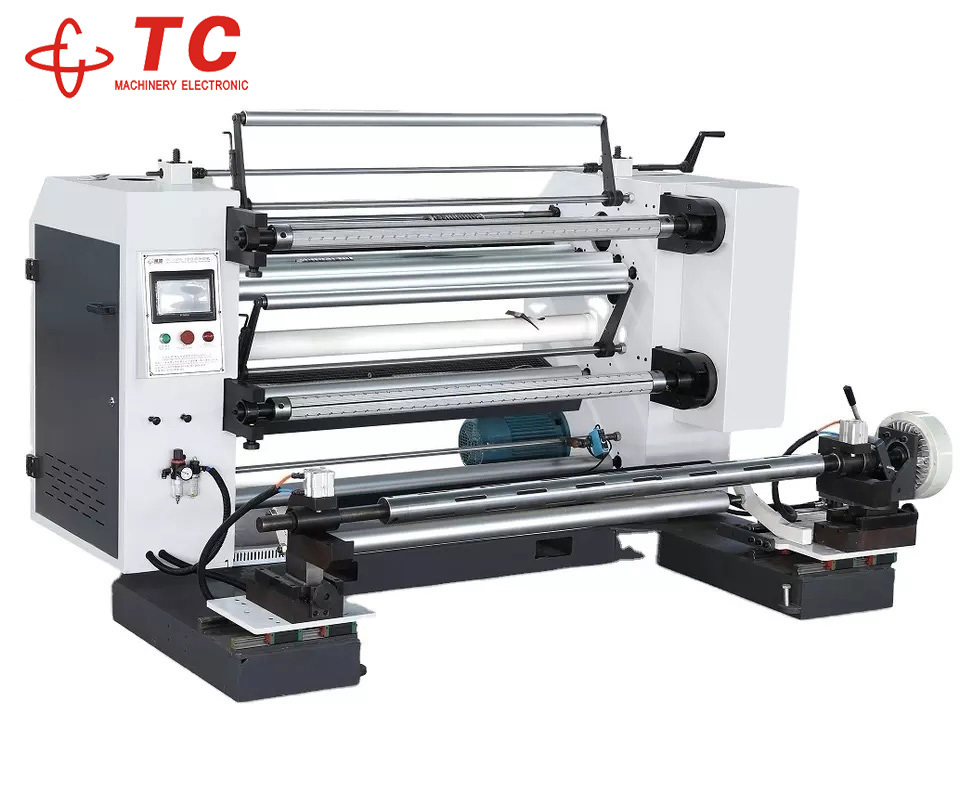

Model No.: TC-1350-I , High Quality Film Cutting Machine
Max. cutting width:	1300mm
Max Film Outter diameter	400mm
Max Film inner diameter	76mm
Machine cutting speed	1-50m/min
Cutting thickness	0.1-0.30mm
Motivity power:	2.2kw
Machine weight	around 2500kgs
Machine Size	2500X1600X1380mm
knife types	interface knives (round knife will need extra cost)
Max. cutting shares	15 shares

Products Words

Cutting Paper /PVC film machine is designed for PVC edge banding ,wrapping films , decorative papers and laminated films and other materials , it works by air expender

to unwind and wind roll, which helps the paper or pvc film straightly ,and we adopt to
Gear drive instead of belt drive to operate easily .

Round Knife

Made of steel imported from Germany, the blade is sharp and can be cut accurately.slit thickness0.2-0.5mm film

Interface Knife

Made of steel imported from Germany, the blade is sharp and can be cut accurately.slit thickness0.05-0.2mm film

Application Scope

Suitable materials:

Insulation Paper,Pvc Films,Pet Films,Non-woven fabrics,Plastic films,Kraft paper,Polyester fabrics ect.

Packing & Delivery

1, Foam & shrink film

2, Wooden case should be added more cost

Company Profile

---- Focus on the decoration of furniture surface to be a industry benchmark.

Take innovation as the mission of GUANGDONG TC MACHINERY MANUFACTURING CO.LTD (Original name Foshan TC Woodworking Machinery
Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was founded in 2006, owns a modernized production base of round 30,000 sqm,has set up many branch marketing companies throughout the country gradually, with staff 126 employees ,located at Jiangmen city ,Guangdong, China, and operated center in Shunde, Foshan, Guangdong.

it is the China first Top “laminating mahcine professor ”decoration production line of professional manufacturers.Realized the demand and harmonious between humans and environment by forest , our owner ,also the general engineer ,on the other hand has been
investing his expertise on 20 years’ research and development to fulfil decorate furniture surface by laminate machines to be instead of limited solid wood sources in all over the world , Meanwhile , most end-user’s underlying quest for smaller ,smarter and simple Laminating machine production lines . when most companies are busy marking big ,

over-complicated and fancy -looking machines in order to mark a high price. Yes , we do not follow suit from our beginning in 2006 .

We specializes in designing and manufacturing surface decorative wrapping/laminating machines: spread glue, laminate decorative films on the surface of complex shapes, flat
panels.....main products are as following:

*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series

Our products sells to overall China and many different countries. Currently, factory
has over a perfect after-sales service team and with a designer team of years experience.
Also, to offer customers the qualified and competitive price products, and assure the best shipment time, we not only assemble machines, but also produce and sell machine components and accessories. In additional, we can customize machines according to
your' requirement, support do your best products.Welcome your inquiry and expect to
work with you together and offer you the best service.

Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.

our customer

Exhibition

Certifications

FAQ

Q1. Are you a trading company or a factory?
We are the factory since 2006. located at No. 28, Kunshan East Road,

Hecheng Town, Heshan City, Jiangmen City, Guangdong Province,with
a plant area of around 26,000 square meters.

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 50% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
Normal 380V voltage is 10-25 days, other voltages are 20-40 days.depend
on the different machines and the factory order situation.

Q5. What about the after sales services?
Services is permanet.

We will offer photos with illustrations, videos, manual or on-line support.

if you want to service in your factory, need to charge USD110/day/engineer,
in additional, round tickets, hotel, food, translation and any other fees related
to overseas service need to be paid by buyer.
