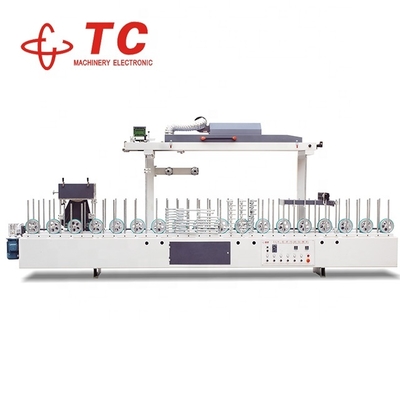

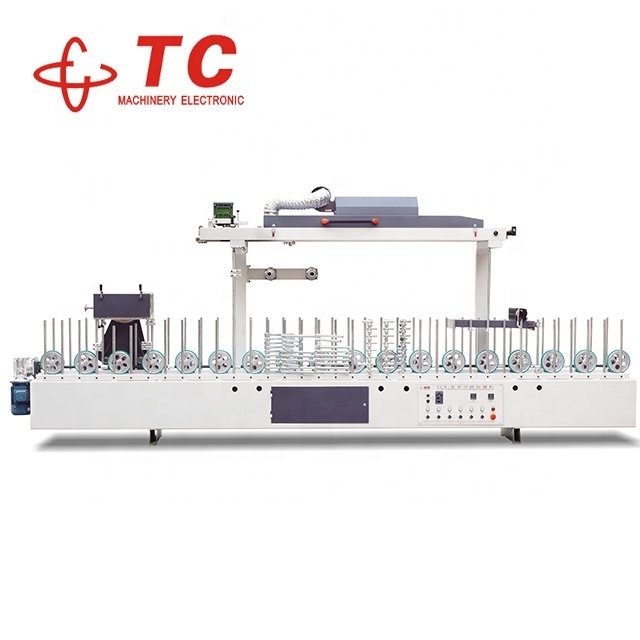

Name: Heavy Duty Profile Wrapping & Pressing Machine with 5-90mm Thick Profiles for Cabinet or Door Making
Brand: Guangdong TC Machinery Manufacturing Co., Ltd.
Availability: InStock

Home Products Cold Glue Profile Wrapping Machines

Heavy Duty Profile Wrapping & Pressing Machine with 5-90mm Thick Profiles for Cabinet or Door Making

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	TC Machinery Electronic

Contact Now

Detailed Product Description

Machine Type:	Profile Wrapping Machine	Video Outgoing-inspection:	Provided
Machinery Test Report:	Not Available	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Warranty:	1 Year	Weight (kg):	1000
Power (kw):	10	Key Selling Points:	One Machine With Multiple Uses
Product Name:	Cold Glue Profile Wrapping Machine	Glue:	Cold Glue
Covering Film:	PVC, Paper	Base Profiles:	Base Profiles:MDF,Particle Board, Plywood, WPC,PVC,Aluminum, Steel
Voltage:	AS Request	Maximum Process Thickness:	90mm
Minimum Process Length:	600mm	Speed Of Material Delivery:	0-30m/min
Maximum Diameter Of Roll Cover Material:	400mm	Max. Film Covering Width:	300mm(Can Customized 400mm Width)

Product Description

Profile Woodworking Wrapping Machine is mainly for the decoration

Materials, WPC, PVC, MDF, Plywood, particle board, aluminum material

surface with PVC wrapping, with scraping glue system to keep the glue

spreading uniform, it is suitable for different complicate shape, as angle

parts, around ARC, roughness, extruding shape, so as to get a excellent surface.

Suitable for building materials,furniture,tabletops,doors,windows,trim or related

manufactuers use.Complex shapes can achieve the perfect product surface

cladding process.

Main technology parameter
Maximum film covering width	300mm
Maximum process thickness	90mm
Maximum process length	600mm
Speed of material delivery	0-30m/min
Motivity power	1.5kw
Sticking glue power	0.4kw
Heating power	6.5kw
Maximum diameter of roll cover material	400mm
Fiexible maximum width of cover film	400/600/900/1200mm
Machine weight	2000kg
Machine structure size	5230/6230* 800*2000mm

Products Words

Wrapping machine works by using different angles roller coated on the work

piece to suppress, in the process, the process pressure rate and pressure can

be adjusted according to different coating material.

A full set of manufacturing processes can be a full automatic assembly line,

the normal working can be done without human intervention, it just need to feed

material from adhesive coating to expect the sending until the product be finished

which reduce labor costs and ensure the passing rate of processed products and

processing efficiency.

COLD GLUE BOX

Covering Film: PVC

Glue type: cold glue( two component oil based glue)

Base Profiles: WPC, MDF, Plywood, particle board,
UPVC, Metal Profiles.

COLD GLUE BOX

Glue Type: Cold glue ( water based glue or single component glue oil based glue)

Covering Film: PVC, Paper, leather

Base Profiles: WPC , MDF, plywood, particle board, profiles.

LAMINATING EFFECT

● Different designs of pressure wheels to press film on two side edges and bottom edges of the panel

Suitable Materials

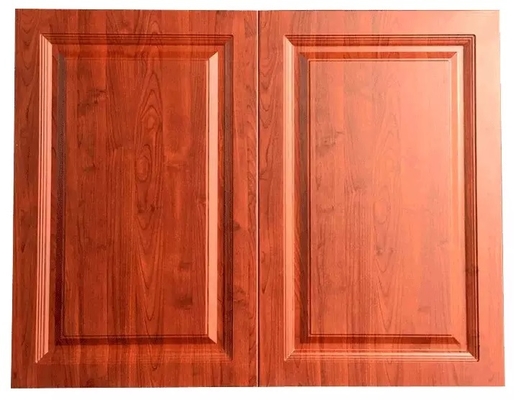

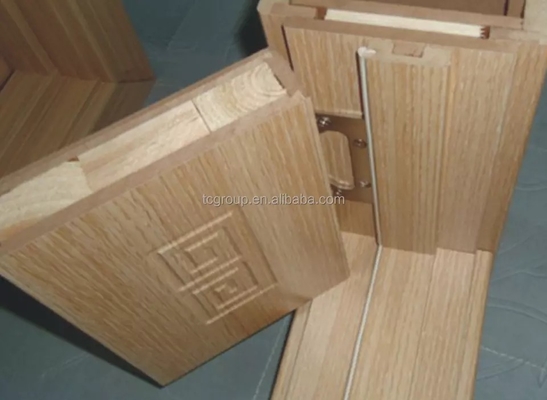

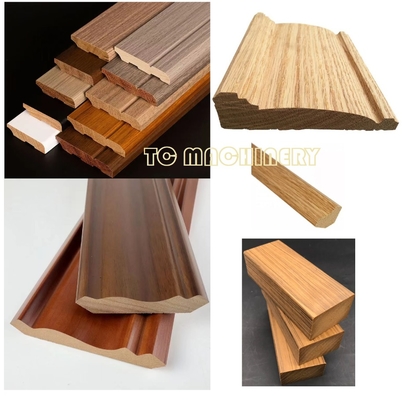

Finished product display

Covering Material: Veneer, CPL, Paper

Glue: EVA hot glue

Base Material: MDF, plywood, particle board, solid wood

Packing & Delivery

1, Foam & shrink film

2, Wooden case should be added more cost

Company Profile

---- Focus on the decoration of furniture surface to be a industry benchmark.

Take innovation as the mission of GUANGDONG TC MACHINERY MANUFACTURING CO.LTD (Original name Foshan TC Woodworking Machinery
Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was founded in 2006, owns a modernized production base of round 30,000 sqm,has set up many branch marketing companies throughout the country gradually, with staff 126 employees ,located at Jiangmen city ,Guangdong, China, and operated center in Shunde, Foshan, Guangdong.

it is the China first Top “laminating mahcine professor ”decoration production line of professional manufacturers.Realized the demand and harmonious between humans and environment by forest , our owner ,also the general engineer ,on the other hand has been
investing his expertise on 20 years’ research and development to fulfil decorate furniture surface by laminate machines to be instead of limited solid wood sources in all over the world , Meanwhile , most end-user’s underlying quest for smaller ,smarter and simple Laminating machine production lines . when most companies are busy marking big ,

over-complicated and fancy -looking machines in order to mark a high price. Yes , we

do not follow suit from our beginning in 2006 .

We specializes in designing and manufacturing surface decorative wrapping/laminating machines: spread glue, laminate decorative films on the surface of complex shapes, flat
panels.....main products are as following:

*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series

Our products sells to overall China and many different countries. Currently, factory
has over a perfect after-sales service team and with a designer team of years experience.
Also, to offer customers the qualified and competitive price products, and assure the best shipment time, we not only assemble machines, but also produce and sell machine components and accessories. In additional, we can customize machines according to
your' requirement, support do your best products.Welcome your inquiry and expect to
work with you together and offer you the best service.

Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.

our customer

Exhibition

Certifications

FAQ

Q1. Are you a trading company or a factory?
We are the factory since 2006. located at No. 28, Kunshan East Road,

Hecheng Town, Heshan City, Jiangmen City, Guangdong Province,with
a plant area of around 26,000 square meters.

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 50% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
Normal 380V voltage is 10-25 days, other voltages are 20-40 days.depend
on the different machines and the factory order situation.

Q5. What about the after sales services?
Services is permanet.

We will offer photos with illustrations, videos, manual or on-line support.

if you want to service in your factory, need to charge USD110/day/engineer,
in additional, round tickets, hotel, food, translation and any other fees related
to overseas service need to be paid by buyer.
