Name: TC Factory Direct Delivery Furniture Veneer Profile EVA Hot Glue Laminating Machine
Brand: Guangdong TC Machinery Manufacturing Co., Ltd.
Availability: InStock

Home Products EVA Hot Melt Profile Wrapping Machines

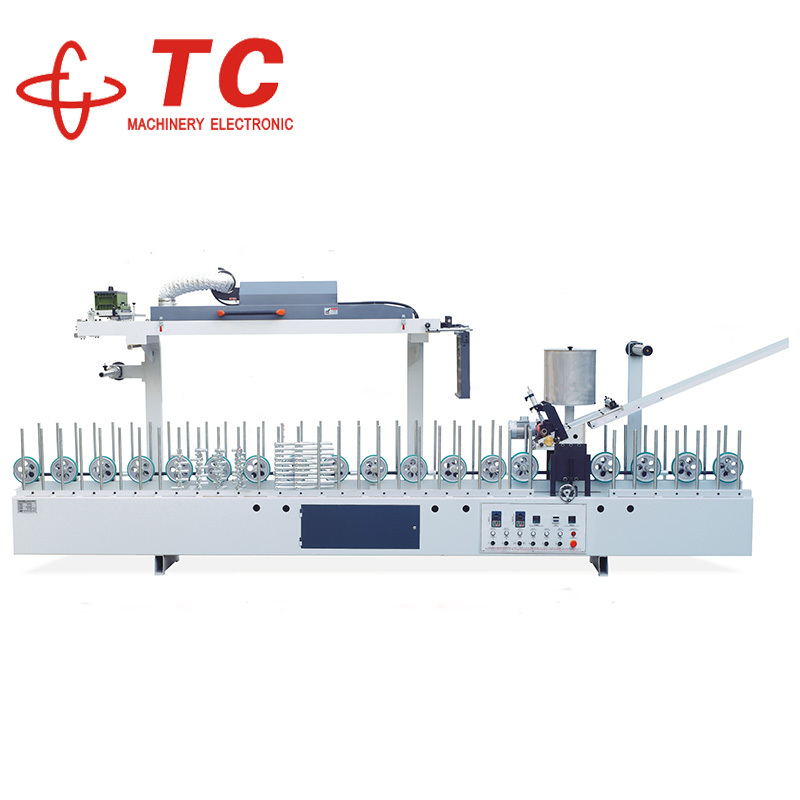

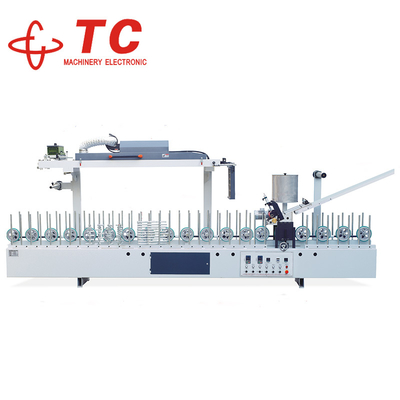

TC Factory Direct Delivery Furniture Veneer Profile EVA Hot Glue Laminating Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	TC Machinery Electronic

Contact Now

Detailed Product Description

Machine Type:	LAMINATING MACHINE	Video Outgoing-inspection:	Provided
Machinery Test Report:	Not Available	Core Components:	PLC, Gearbox, Motor, Pressure Vessel
Warranty:	1 Year	Weight (kg):	1800
Power (kw):	15	Key Selling Points:	MUFTIFUNCTIONAL
Product Name:	EVA Hot Melt Profile Wrapping Machine	Glue:	EVA Hot Melt Glue And Cold Glue Adhesive
Covering Film:	Veneer Sheet, Roll Veneer, Paper, Cpl	Base Profiles:	Solid Wood, Particle Board, Plywood, Mdf
Voltage:	AS Request	Maximum Process Thickness:	90mm
Minimum Process Length:	600mm	Speed Of Material Delivery:	0-30m/min
Maximum Diameter Of Roll Cover Material:	400mm	Max. Film Covering Width:	300mm(Can Customized 400mm Width)

Product Description

Wrapping machine works by using different shapes of pressure rollers to coat on the workpiece to suppress,in the process,the process pressure rate and pressure can be adjusted according to different coating material. A full set of manufacturing processes can be full automatic assembly line,the normal working can be done without human intervention,it just need to feed material from adhesive coating to expectthe sending until the product be finished.which reduce labor costs and ensure the passing rate of processed products and processing efficiency.

There are cold glue and EVA hot glue systems to choose from. For different materials, different glues can be selected to achieve dual uses in one machine.

Maximum film covering width	300mm /400MM
Maximum process thickness	90mm
Minimum process length	600mm
Speed of matenal delivery	0-30m/min
Motivity power	1.5kw
Sticking glue power	0.4kw
Heating power	6.5kw
Maximum diameter of roll cover material	400mm
Fiexible maximum width of cover film	400/600/900/1200mm
Machine weight	2000kg
Machine structure size	L4000/5000/6000xW600xH2000mm

Products Words

High standard adhesive can be coated with a variety of angles, circular, convex surface, pressure trough, curling, etc.

The finished products are suitable for building materials, furniture, tabletops,
door frames, windows, trim or related manufacturers use. Complex shapes
can achieve the perfect product surface cladding processing, curling, etc.

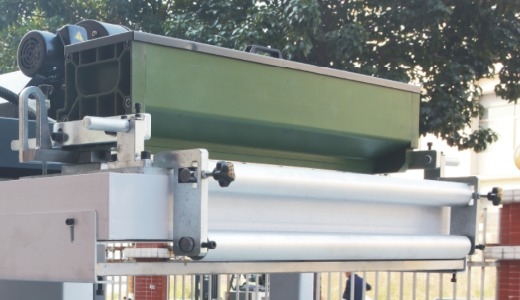

COLD GLUE BOX

●In addition to using hot glue, you can also use two-component oil-based glue to produce wood-plastic or plastic materials. One machine can be used for two purposes, which is super cost-effective!

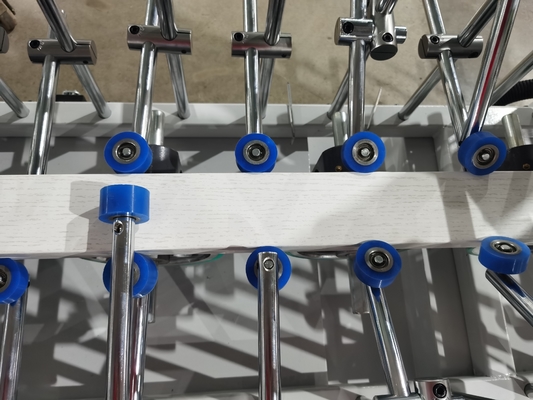

LAMINATING EFFECT

● Different designs of pressure wheels to press film on two side edges and bottom edges of the panel

Suitable Materials

Covering Material: Veneer, CPL, Paper

Glue: EVA hot glue

Base Material: MDF, plywood, particle board,

solid wood

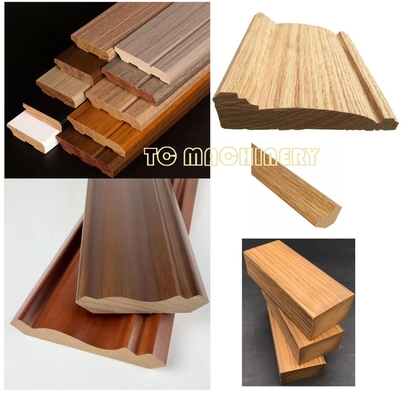

Finished product display

Packing & Delivery

1. Packed by Foam & shrink film

2. Extra cost is necessary if packed by wooden case

Company Profile

---- Focus on the decoration of furniture surface to be a industry benchmark.

Take innovation as the mission of GUANGDONG TC MACHINERY MANUFACTURING CO.LTD (Original name Foshan TC Woodworking Machinery
Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was founded in 2006, owns a modernized production base of round 30,000 sqm,has set up many branch marketing companies throughout the country gradually, with staff 126 employees ,located at Jiangmen city ,Guangdong, China, and operated center in Shunde, Foshan, Guangdong.

it is the China first Top “laminating mahcine professor ”decoration production line of professional manufacturers.Realized the demand and harmonious between humans and environment by forest , our owner ,also the general engineer ,on the other hand has been
investing his expertise on 20 years’ research and development to fulfil decorate furniture surface by laminate machines to be instead of limited solid wood sources in all over the world , Meanwhile , most end-user’s underlying quest for smaller ,smarter and simple Laminating machine production lines . when most companies are busy marking big ,

over-complicated and fancy -looking machines in order to mark a high price. Yes , we

do not follow suit from our beginning in 2006 .

We specializes in designing and manufacturing surface decorative wrapping/laminating machines: spread glue, laminate decorative films on the surface of complex shapes, flat
panels.....main products are as following:

*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series

Our products sells to overall China and many different countries. Currently, factory
has over a perfect after-sales service team and with a designer team of years experience.
Also, to offer customers the qualified and competitive price products, and assure the best shipment time, we not only assemble machines, but also produce and sell machine components and accessories. In additional, we can customize machines according to
your' requirement, support do your best products.Welcome your inquiry and expect to
work with you together and offer you the best service.

Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.

our customer

Exhibition

Why Choose US?

1）Professional Manufacturer of profile wrapping/laminating

machines for 18+ years

2) Factory is around 30,000 square meters

3) More than 20 after sales service engineers

4) Our machines are permanent service

5）Designers experience: 20+ years in the industry field

FAQ

Q1. Are you a trading company or a factory?
We are the factory since 2006. Factory at Heshan City,

Jiangmen City, Guangdong Province, around 1~2 hours
from Guangzhou, 1 hour from Foshan by car

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
10-40 working days, depends on what configurations you
choose. we have semic automatic and fully automatic.

Q5. What about the after sales services?
Services is permanet.

1.We will offer photos with illustrations, videos, manual or
on-line support.
2.Service in overseas customer's factory.

if you want to service in your factory, need to charge USD
120/day/engineer, in additional, round tickets, hotel, food,
translation and any other fees related to overseas service
need to be paid by buyer.
