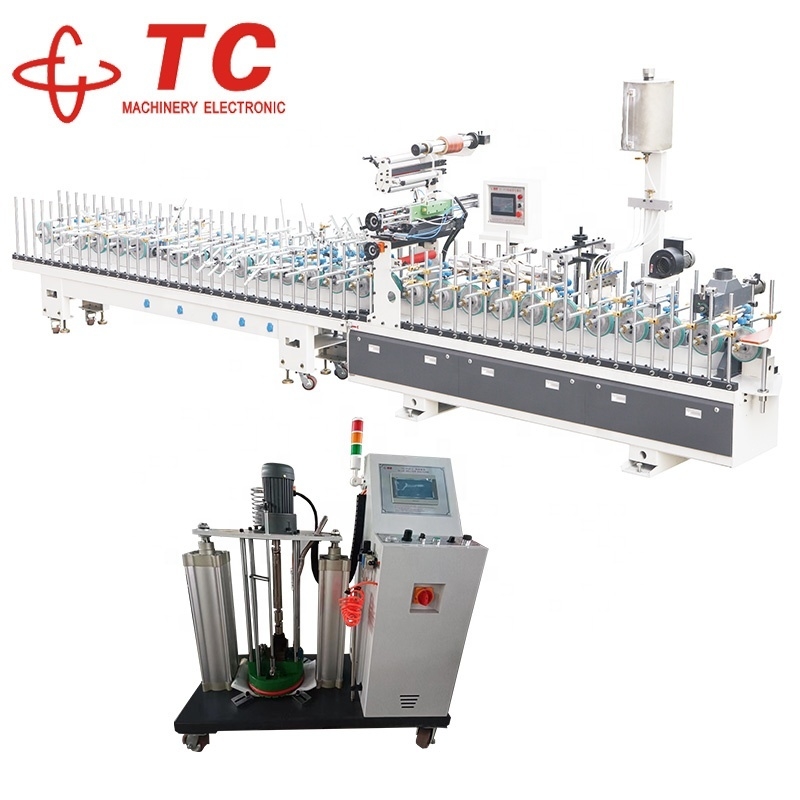

Name: PLC Profile Wrapping Machine for 300mm & 450mm, 15-50m/min, CE & ISO9001 Certified
Brand: Guangdong TC Machinery Manufacturing Co., Ltd.
Availability: InStock

Home Products Pur Hot Melt Profile Wrapping Machines

PLC Profile Wrapping Machine for 300mm & 450mm, 15-50m/min, CE & ISO9001 Certified

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	TC Machinery Electronic

Contact Now

Detailed Product Description

Machine Type:	LAMINATING MACHINE	Video Outgoing-inspection:	Provided
Machinery Test Report:	Not Available	Core Components:	PLC, Gearbox, Motor, Pressure Vessel
Warranty:	1 Year	Weight (kg):	1800
Power (kw):	15	Key Selling Points:	MUFTIFUNCTIONAL
Product Name:	PUR Hot Melt Glue Profile Wrapping Machine	Glue:	PUR Hot Glue
Covering Film:	PVC,Roll Veneer, PP, Paper, Aluminum Foil, Leather, Etc	Base Profiles:	MDF,Particle Board, Plywood, WPC,PVC,Aluminum, Steel
Voltage:	AS Request	Advantage:	Multifunctional
Control System:	PCL+Touch Screen	Insulation Function:	Yes
Over Temperature Alarm:	Yes	Low Glue Level Alarm:	Yes

Product Description

Product Name	PUR hot melt glue profile wrapping machine
Suitable Film	pvc, paper, veneer, pp, aluminum foil,etc.(all in roll)
Glue type	Pur hot melt adhesive
Suitable base profiles	mdf,plywood, particle, wpc, upvc, aluminum, steel. etc.
Application of finished products	Door frame, window, ceiling, skirting, wall, picture frame,voice speeker, and other decoration uses
Max.covering film width	300mm
Base profile Length	600mm
Base profile Max. thickness	90mm
Machine speed	1-50m/minute
Total power	10kws (exclude heating guns)
Machine sizes	6000x800x2100mm
Machine weight	around 2500mm
Glue melter capacity	20kgs (5 gallon)
Brand	TC Electronic Machinery
Voltage	as request
Service	1,Photos with illustration, videos, manual, on-line support 2,after corona virus, if need service overseas, will need extra cost
Packing	by foam and transparent shrink film; plywood case packing will need extra cost

Products Words

PUR profile laminating machine is suitable for sticking leather, PVC, veneer .etc on decorativestrip (wpc strips),aluminumprofile, and is mainly for different angles, ARC, roughness and the edges to get excellent performance. What's more, PUR glue has thefeatures of anti-aging, anti-UV which makes it to be the top choice for outdoor.

Automatic Multifunction Wooden Door Profile Wrapping Machine is special for

wrapping decoration moulding line, aluminum workpieces, material surface finishing

with leather, PVC, veneer material etc ,this machine have a strong feature of easy operation,laminating rapidly, strong adhesive, no bubbles according to the pieces

different shapes, such as angle parts, around ARC,roughness, extruding, complicate

shapes, and can get a beautiful surface

GLUE COATING HEAD

●Teflon Coating, high temperature resistant

●Non-stick surface treatment

●Gluing knife processing tolerance less than a piece of a hair

LAMINATING EFFECT

● Different designs of pressure wheels to press film on two side edges and bottom edges of the panel

Suitable Materials

PUR universal wrapping machine is suitable for sticking leather,PVC,veneer etc on

decorative strip(wpc strips),aluminum profiles,wood profiles and is mainly for differentangles,ARC,roughness and the edges to get excellent performance.what's
more,PUR glue has the features of anti-aging,anti-UV which makes it to be the top

choice for outdoor.

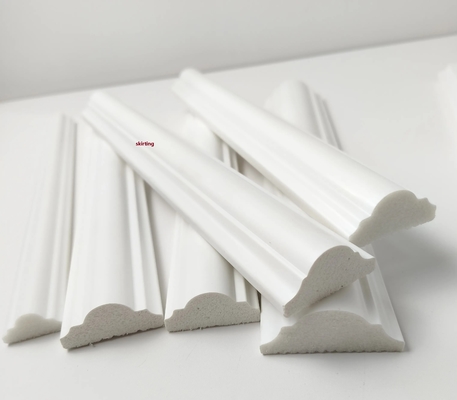

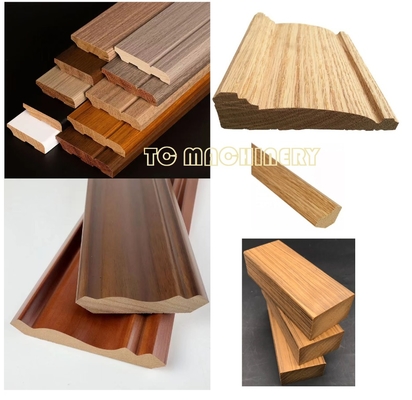

Finished product display

Glue：PUR Hot Glue

Covering Film：PVC，Roll Veneer, PP, Paper, Aluminum Foil, Leather, etc.

Base Profiles：MDF、Particle board, plywood, WPC,PVC
Aluminum, Steel

Packing & Delivery

1, Foam & shrink film

2, Wooden case should be added more cost

Company Profile

Take innovation as the mission of GUANGDONG TC MACHINERY

MANUFACTURING CO.LTD (Original name Foshan TC Woodworking
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), found
in 2006, factory cover around 30,000 sqm, located in Jiangmen,
Guangdong, China, with marketing center in Shunde, Foshan, Guangdong.

We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative
films on the surface of complex shapes, flat panels.....main products
are as following:

* Complex shaped Profile Wrapping Machine Series
* Multipurpose PUR Hot Glue Flat Panel Machine Series
* PVC Paper Wooden Panel Laminating Machine Series
* Metal Sheet Professional Laminating Machine Series
* Complex Shaped Vacuum Membrane Press Machine Series
* Roll Film Cutting Machine Series
* Glue Spreader Machine Series
* Other Machines and Machine accessories/components.

Our products sells to overall China and many different countries. Currently,
factory has over 100 workers, a perfect after-sales service team and with
a designer team of years experience. Also, to offer customers the qualified
and competitive price products,and assure the best shipment time, we not
only assemble machines, but also produce and sell machine components
and accessories. In additional, we can customize machines according to your’ requirement, support do your best products.Welcome your inquiry and expect

to work with you together and offer you the best service.

our customer

Exhibition

Certifications

FAQ

Q1. Are you a trading company or a factory?
We are the factory since 2006. located at No. 28, Kunshan East Road,

Hecheng Town, Heshan City, Jiangmen City, Guangdong Province,with
a plant area of around 26,000 square meters.

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 50% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
Normal 380V voltage is 10-25 days, other voltages are 20-40 days.depend
on the different machines and the factory order situation.

Q5. What about the after sales services?
Services is permanet.

We will offer photos with illustrations, videos, manual or on-line support.

if you want to service in your factory, need to charge USD110/day/engineer,
in additional, round tickets, hotel, food, translation and any other fees related
to overseas service need to be paid by buyer.

Guangdong TC Machinery Manufacturing Co.Ltd

FactoryAdd: Kunshan East Road, Hecheng Town, Heshan City, Jiangmen , Guangdong,China

Marketing Center:North of Xinxi 3rd, Lunjiao Town, Shunde , Foshan,
Guangdong , China
