TC Factory Price Automatic HPL PVC PET PP Film PUR Hot Melt Glue Flat Laminating Machine for Door Furniture

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	TC Machinery Electronic

Contact Now

Detailed Product Description

Machine Type:	LAMINATING MACHINE	Video Outgoing-inspection:	Provided
Machinery Test Report:	Not Available	Core Components:	PLC, Rollers, Structures, Designs&Details
Warranty:	1 Year	Weight (kg):	9600
Power (kw):	75	Key Selling Points:	Multifunctional
Product Name:	PUR Hot Glue Laminating Machine	Glue:	PUR Hot Melt
Covering Film:	High Glossy Film, Acrylic, HPL, PVC, PET,etc.	Base Profiles:	WPC, PVC Foam, Wooden Panel, ACP, Gypsum Board,etc.
Automatic Level:	Semi Automatic&Fully Automatic For Choice	Advantage:	Multifunctional
Passing Height:	3-45mm	Panel Width:	400-1280mm
Panle Length:	600-36000mm	Panle Thickness:	2.5-45mm

Product Description

Semic automatic pur hot metl flat panel laminating machine

Working Width	1350mm
Working Height	900+20mm
Feed Speed	8-20m/min
Passing Height	3-45mm
Machine length	L10000~36000 * W2250* H3400mm
Machine Weight:	6~10 tons
Glue Melter	200kgs (55 gallon, 2 guns, 2 hoses)
Substrate:
Material	WPC/PVC Foam /SPC/Chipboards/MDF/HDF// Aluminum Composite Board,etc
Width	400-1280mm
Length	600-3600mm
Thickness	2.5-45mm
Surface Decorative Materials:
Covering Material	PVC,PET,Acrylic,HPL, Aluminum Sheet, Melamine Paper, etc.

Products Features

PUR Hot Melt Adhesive Laminating Machine

has the advantage of no crushing, no bubbly and good quality

feature, as well as advanced technical, high precision, reasonable composition, new structure, easy operation, it’s a good machine

for the high precise sticking also include front and back conveying,

glue spreading structure, feeding, brusher cleaning and hot pressing

structure.The laminated finished board are weather resistance,

waterproof, anti-uv and anti-aging, suitable for many decoration

usages, such as kitchen cabinets, Bathroom cabinet, wardrobe,

other doors and furnitures, walls, and other decoration us.

The machine can clean dust, spread glue, heat, press decorative

film and protective film automatically, you just feed the boards till

the whole processings are finished, the finished products are without bubbles, without wrinkles, achieve perfect finished effect, and alsocan reduce a lot of labor cost, improve production effect and assure qualified passing rate.

During the production, you could adjust temperartures, glue volume according to there quirments.

What is more, you can also add another auto systems, such aboard feeding, outfeeding, film cutting and trimming, a full automatic line,

without human interfence.

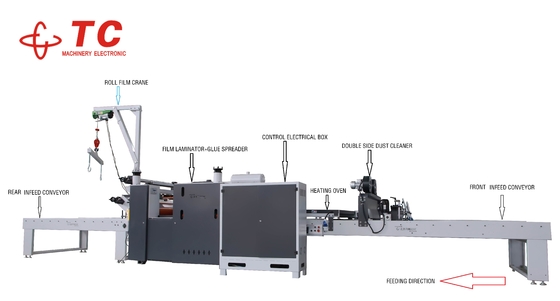

Machine Configurations for Choice:

1. Panel Auto Loading

2. Dust cleaner
*Double side dust cleaner,
*Simple dust cleaners
*Electrostatic liquid dust removal for choice

3. Pre-heating

4. Glue spreader

*3 Roller

*5 Roller+Doctor blade

5. Decorative sheet placing table+Heating oven

6. Film Laminator

7. Auto cutter + Auto trimmer

8. Single Panel Turn Over

9.Panel Auto Unloading

Film Laminator

1. Decotative Film Laminating + Protectie Film Laminating;

2. oil+Electric Heating;

3. Decerative Roll film corrector;

4. Stronger Frame more stable, Powder coating instead of paint for better scratch resistance;

5. PLC Touch Screen:easy to operate the machine and easier and faster to detect to solve if fault;

6. PVC/PET FILM edge auto trimming;

GLUE SREADER

1.5 rollers:∮240x1350mm;

2.TWO layers of scraper:better gluing effect for doing high glossy film;

3:oil & Electric Heating;
4.Foldable conveyors: easy clean the machine after

production every time;

5.PLC Touch Screen: much better and easier to Control the machine, easier and faster and if any faults, easier to find out and solve quickly also.

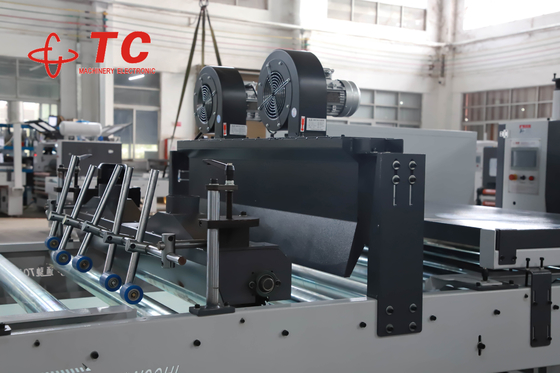

DOUBLE SIDE DUST CLEANER

1.5KW AIR FAN*2PCS BETTER CLEANING EFFECT

DELIVERY ROLLERS

STRONGER AND MORE DURABLE

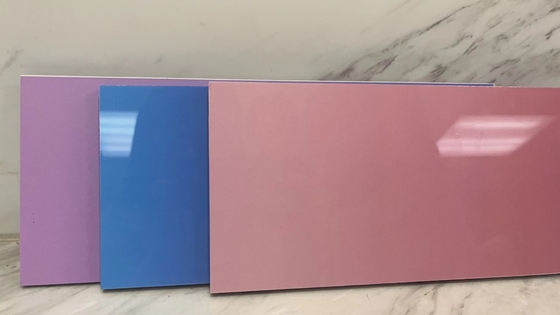

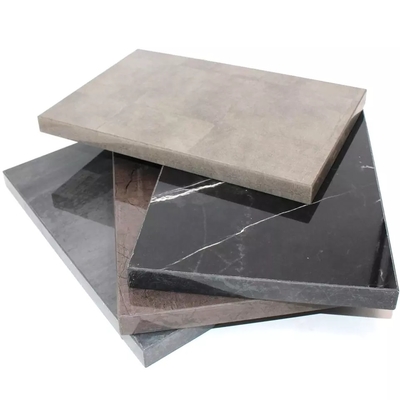

Finished product display

Widely used in kitchen cabinet door, bedroom wardrobe door,

cupboard doorshoes cabinet, TV cabinet, display cabinet,Children

bedroom cabinet and study cabinet and bathroom cabinet , sliding

doors , inner doors ,indoor decoration.

Panels: Particle Board, MDF, Plywood, High Polymer Plastic Board ,

Foam Boards, etc.

Covering Film: High glossy film, PVC, Roller Paper, HPL, CPL, Acrylic,

Aluminum Sheet, Aluminum Foil,etc.

Glue:PUR hot melt glue( or add cold glue together)

Packing & Delivery

1.Packed by Foam & shrink film

2.Extra cost is necessary if packed by wooden case

Company Profile

---- Focus on the decoration of furniture surface to be a industry benchmark.

Take innovation as the mission of GUANGDONG TC MACHINERY

MANUFACTURING CO.LTD (Original name Foshan TC Woodworking
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was
founded in 2006, owns a modernized production base of round 30,000

sqm,has set up many branch marketing companies throughout the country

gradually, with staff 126 employees ,located at Jiangmen city,Guangdong,

China, and operated center in Shunde, Foshan, Guangdong.

it is the China first Top “laminating mahcine professor ”decoration
production line of professional manufacturers.Realized the demand and
harmonious between humans and environment by forest , our owner ,also
the general engineer ,on the other hand has been investing his expertise on
20 years’ research and development to fulfil decorate furniture surface by
laminate machines to be instead of limited solid wood sources in all over
the world , Meanwhile , most end-user’s underlying quest for smaller ,smarter
and simple Laminating machine production lines . when most companies are
busy marking big ,over-complicated and fancy -looking machines in order to
mark a high price. Yes , we do not follow suit from our beginning in 2006 .

We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative
films on the surface of complex shapes, flat panels.....main products
are as following:

*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series

Our products sells to overall China and many different countries. Currently,
factory has over a perfect after-sales service team and with a designer team of
years experience. Also, to offer customers the qualified and competitive price
products, and assure the best shipment time, we not only assemble machines,
but also produce and sell machine components and accessories. In additional,
we can customize machines according to your' requirement, support do your
best products.Welcome your inquiry and expect to work with you together and
offer you the best service.

Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.

our customer

Exhibition

Why Choose US?

1）Professional Manufacturer of profile wrapping/laminating machines for 18+ years

2) Factory is around 30,000 square meters

3) More than 20 after sales service engineers

4) Our machines are permanent service

5）Designers experience: 20+ years in the industry field
